Fire & Gas Detection System

MGS200

Fire & Gas Detection

The MGS200 Is A Comprehensive Fire And Gas Detection Solution Designed For Continuous Monitoring And Protection Of Industrial Facilities. It Ensures Early Detection, Reliable Alarm Management, And Seamless Integration With Safety Systems.

Product Overview

MGS200, is a modular and flexible control system for Gas and Fire Detection and control which offers optimum compliance, safety and productivity for sites. It makes F&G system design, installation, configuration and operation simple.

MGS200 is an intelligent F&G controller that accepts inputs from flammable and toxic gas detectors, Flame detectors, Fire Detectors, Switches, Manual call points and send output to devices like valves in Fire Extinguishing Systems, HVAC system, Horn & Beacons, Fire brigade , F&G consoles and DCS/ESD systems.

Simple To Use

MGS200 offers flexibility whilst still providing simple operation. All the day to day functions are accessible via push buttons on thefront panelper module. a Digital Display on all modules provide an instantaneous representation of the gas concentration on every detector. Alarm , pre-Alarm and Fault LEDs light when a hazard or fault is detected. This means the whole rack status can be checked at a glance. MGS200 is an intelligent F&G controller that accepts inputs from flammable and toxic gas detectors, Flame detectors, Fire Detectors, Switches, Manual call points and send output to devices like valves in Fire Extinguishing Systems, HVAC system, Horn & Beacons, Fire brigade , F&G consoles and DCS/ESD systems.

Features And Benefits

standard Serial Modbus interfaces to HMIs and other system and PLCs ensures 24/7 system status visibility for constant safety
Flexible/Modular and Expandable system architecture to meet site specific needs such as Redundancy or distributed I/O’s for unlimited input and output channels
Easily accessible system status that can be seen at a glance using Local Displays
Easy Maintenance using individual channel inhibition
Possibility of The one man calibration using front panel of modules which reduces the service overhead by half.

MGS200

FOUR-CHANNEL GAS AND FLAME DETECTOR MODULES
FOUR ZONE PER CONVENTIONAL MODULE
CONVENTIONAL FIRE-SMOKE DETECTORS, HEAT DETECTORS AND MANUAL CALL POINT UP TO 10 TO 20 DEVICES PER ZONE
FRONT MODULE KEYPAD FOR CONFIGURATION AND CALIBRATION
HIGH VISIBLE DIGITAL DISPLAY PER MODULE
DUPLICATE SIGNAL(4-20 mA) TO OTHER SYSTEMS PER CHANNEL
THREE MODBUS COMMUNICATION TO DCS/ESD
INDIVIDUALS PRE-ALARM AND ALARM LEDS
SENSOR FAULT CHECKING
SIL CERTIFICATE IN PROGRESS
REDUNDANT POWER SUPPLY
EASY TO MAINTAIN AND REPLACE THE MODULE
FUNCTIONAL SAFETY SYSTEM ACCORDING TO IEC61508, IEC6151, IEC61511

Datasheet

System Overview

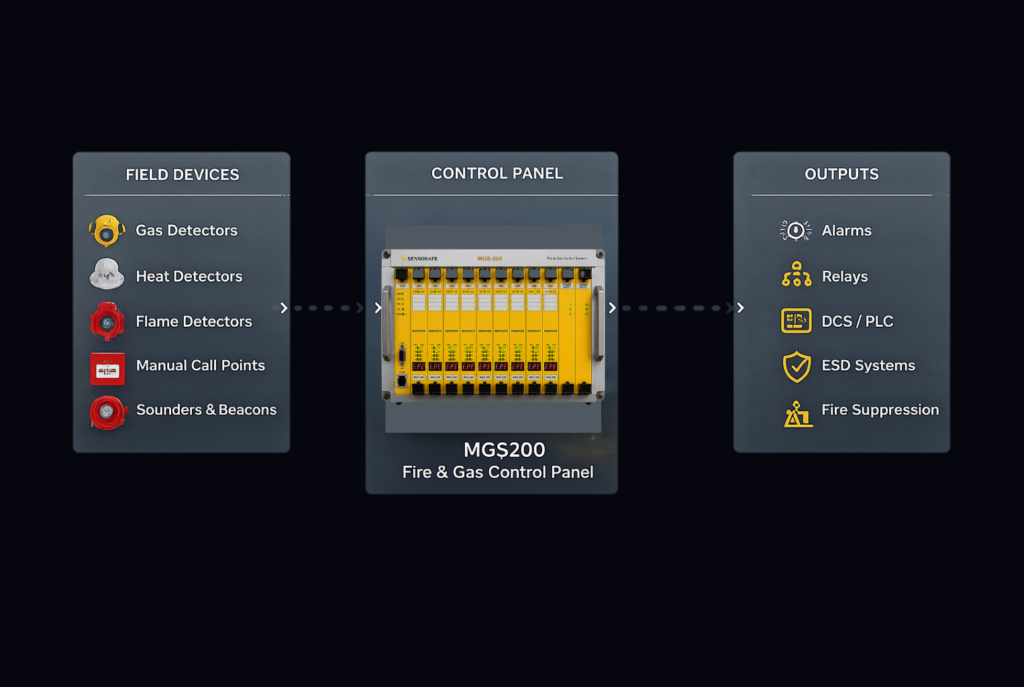

Typical System Architecture

MGS200 Provides A Reliable And Flexible Platform For Fire And Gas Detection In Hazardous And Critical Areas. The System Supports A Wide Range Of Field Devices And Offers Advance Diagnostics, Alarm Management And Communication Capabilities.
